Gas Stove Burner Won’t Stay Lit After You Release the Knob

If your gas burner lights but dies the second you let go of the knob, the cause is almost always a failing thermocouple, an off-center burner cap, or not holding the knob long enough (5 seconds) to heat the flame-failure sensor. Clean the sensor, reseat the cap, then test the thermocouple with a multimeter before swapping parts.

Safety first. Read this before you start.

• If you smell gas right now: leave the home now. Do not flip light switches, use your phone indoors, or touch any electrical device. Call your gas utility from outside, then dial 911 if the smell stays.
• DIY scope of this guide: thermocouple and flame-failure-device (FFD) cleaning and replacement, burner cap reseating, igniter and spark module cleaning, multimeter testing.
• Out of scope (licensed gas technician only): gas valve replacement, regulator service, gas supply-line work, internal manifold repair.
• Recall check first. As of May 2026 there’s an active CPSC recall on roughly 174,000 Frigidaire gas ranges (announced March 2026 by Electrolux Group, sold through Home Depot and Lowe’s). Check the CPSC recall database for your make, model, and serial number before you touch anything.
• The “NFPA 54 National Fuel Gas Code” recommends a licensed inspection of gas appliances once a year, including a leak test, regulator pressure check, and thermocouple/FFD function check.

Key takeaways

• The most likely cause is a fouled or failing thermocouple. Gas valve failure is less common than thermocouple-related issues but still possible on older units.
• Hold the knob in for a full 15 to 30 seconds (some Beko/Neff units 30 to 45 seconds) before you assume a part has failed. This is the single most common false-alarm cause.
• Honeywell VS8510/VS8520 thresholds: a healthy thermocouple outputs at least 18 mV no-load and at least 9 mV loaded, with drop-out below 6 mV.
• CPSC recall lookup first. The 2026 Frigidaire recall covers about 174,000 ranges; Samsung 2024, LG 2025, and ZLINE recalls are still active. Verify with the “CPSC recall database” before any DIY work.
• DIY scope is real but bounded. Thermocouple swap and cleaning are fair homeowner tasks. Gas valve, regulator, and supply-line work are licensed-technician jobs.
• Brand notes: Samsung’s “burners die when another is lit” is a supply-pressure issue, not an appliance fault. Whirlpool’s flowchart starts at supply-side checks.
• NFPA 54 recommends an annual licensed gas-appliance inspection no matter the symptoms.

How does a gas burner’s flame-failure safety system work?

Most modern US gas ranges include a safety interlock called a flame-failure device, or FFD. On most surface burners, the FFD is a small probe known as a thermocouple. Some brands use a flame-rectification rod instead. The job is the same either way: prove there’s a flame, or shut the gas off.

Here’s what happens when you turn the knob:

1. You push and rotate the knob. A small valve cracks open and gas flows.
2. The igniter clicks (or a standing pilot lights the gas).
3. The thermocouple tip heats up in the flame and makes a tiny voltage, on the order of millivolts.
4. That signal holds the gas safety valve electromagnet open.
5. You release the knob. If the signal is strong enough (typically 9 mV loaded or higher on a “Honeywell VS8510/VS8520 service data sheet”, the valve stays open.
6. If the signal drops below the drop-out threshold (about 6 mV on the Honeywell platform), the electromagnet releases and the flame dies.

A burner that won’t stay lit usually means the flame-failure safety system is doing its job and shutting off unsafe gas flow.

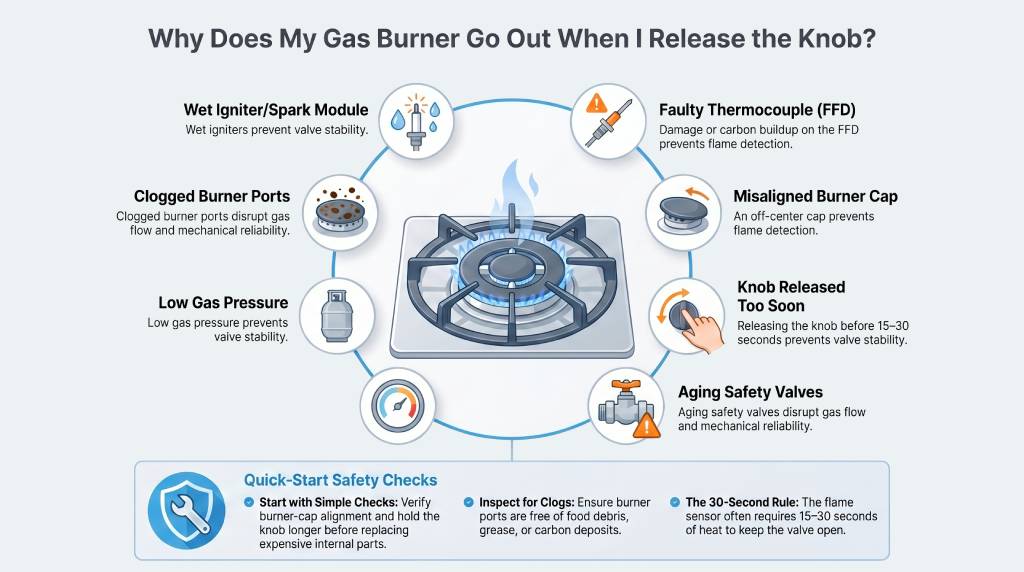

Why does my gas burner go out when I release the knob? The 7 most likely causes

Here are the seven causes in rough order of how commonly they appear in appliance repair discussions, manufacturer troubleshooting guides, and technician reports. Thermocouple-related faults are frequently reported as one of the leading causes when a burner lights but goes out after the knob is released.

1. Faulty or carbon-fouled thermocouple (FFD)

A sooty, oxidized, or burned-through thermocouple can’t produce the millivolt signal the safety valve needs. This is the single most common cause. The probe is short, usually 3 to 6 inches, and it sits right in the burner flame, where carbon from spills builds up over months.

2. Burner cap misaligned

A surface burner cap that’s seated a few millimeters off-center can push the flame away from the FFD probe. The tip stays cool, the millivolt drops, and the valve closes. This is the most common “fix in 60 seconds with no parts” outcome.

3. You released the knob too soon

Owner manuals from GE, Whirlpool, Frigidaire, and Samsung commonly recommend holding the knob pressed for 15 to 30 seconds after ignition. Some older Beko and Neff units may require 30 to 45 seconds. If the thermocouple does not heat fully before the knob is released, the flame-failure device may shut the gas supply off. Before disassembling anything, try lighting the burner again and hold the knob in for a slow count to 30.

4. Clogged burner ports or carbon-clogged gas channel

Cleaning sprays, boil-overs, and food debris can block the small flame ports or restrict gas flow inside the burner head. Technicians frequently report carbon buildup inside burner ports as a cause of unstable flames and ignition problems. Check for debris or carbon deposits that may be clogging the gas delivery path.

5. Weak or aging gas safety valve

The electromagnet inside the safety valve weakens with age. Even a brand-new thermocouple may not pull enough current to hold the valve open if the magnet spring is fatigued. Gas safety valve failure is less common than thermocouple-related issues, but it can still occur on older ranges. Valve replacement is a gas-fitter job in most US jurisdictions.

6. Low gas pressure (LP tank residual or municipal supply)

Samsung’s own “Samsung gas cooktop support page” flags this case directly. If your burners light but don’t stay lit, especially when another burner is on, the cause may be low gas pressure, and the fix is to call your gas supplier. On LP, a near-empty tank can vaporize unevenly and starve the burner during the FFD heat-up window.

7. Failed spark module or wet igniter

A partly failing spark module can ignite weakly, leaving an under-temperature flame on the FFD tip. Common trigger: someone wipes the cooktop with a wet cloth, water wicks under the burner head, and the next ignition fires at half strength until everything dries out. Pull the cap and head, air-dry for 30 minutes, and try again.

How do I fix a gas burner that won’t stay lit? A step-by-step DIY checklist

Work through these in order. Stop when the burner stays lit. Turn off the burner and the gas supply at the shut-off valve before you touch the burner assembly.

1. Check the CPSC recall database first. Look up your make, model, and serial on CPSC recall database – “CPSC.gov recall lookup”. The 2026 Frigidaire recall covers roughly 174,000 units. Older Samsung (1 million units, August 2024), LG (500,000 units, February 2025), and ZLINE recalls are still active. If your unit is on a recall list, stop and follow the manufacturer remedy.
2. Verify hold time. Push the knob, light the burner, and count slowly to 30 (some Beko/Neff units want 45 seconds). If the burner now stays lit, hold time was the issue, not a part.
3. Reseat the burner cap. Lift the cap, set it back down centered on the burner head with no rocking, and try again. Confirm the spark electrode and FFD probe aren’t blocked by the cap.
4. Clean the burner head and ports. With everything cool, lift the head off, soak in warm soapy water, clear ports with a stiff brush or a paperclip (never a toothpick, since splinters can lodge), dry fully, and put it back.
5. Clean the thermocouple tip. Use 320-grit emery cloth or fine sandpaper to remove carbon and oxidation. Wipe with a clean cloth. Re-light and see if the burner stays lit.
6. Multimeter test the thermocouple. See the next section for the steps.
7. Replace the thermocouple if it fails the test. Match the original part number. Tighten the fitting according to the manufacturer’s specification without overtightening. Over-tightening can damage the contact surface and prevent proper operation.
8. If the new thermocouple still fails the millivolt test inside the valve, the gas safety valve electromagnet is weak. Stop. Call a licensed gas technician for valve service.
9. If you smell gas at any point, abort the project, leave the home, and call your gas utility from outside.

How do you test a gas stove thermocouple with a multimeter?

This is a millivolt (DC) test, not a continuity test. You’ll need a digital multimeter with a 200 mV DC range. A Fluke 117 or a Klein MM400 both work well, and any meter with a 0-200 mV DC scale is fine.

Honeywell’s VS8510 and VS8520 combination gas valves are the platform many residential ranges use, and Honeywell’s published service data anchors the PASS thresholds below. Read the Honeywell VS8510/VS8520 service data sheet

Steps

1. Shut off the gas supply at the appliance valve.
2. Disconnect the thermocouple from the gas valve fitting (single 3/8″ or 7/16″ hex nut on most US ranges).
3. Set the multimeter to 200 mV DC.
4. No-load (open circuit) test. Touch the red probe to the thermocouple’s center pin and the black probe to the side of the threaded fitting. Light the pilot or hold a flame on the tip with a match.
5. Read after 30 seconds. A healthy thermocouple should put out at least 18 mV open circuit (no-load). Below 18 mV after a clean, replace it.
6. Loaded test. Reconnect to the valve, light the burner, and probe across the test port (if your valve has one) or use an inline thermocouple adapter. With the magnet seated and the flame on the tip, the loaded reading should be at least 9 mV. Below 9 mV, the thermocouple can’t reliably hold the valve open. Replace it.
7. Drop-out test. Blow out the flame. The valve should release once the signal drops below roughly 6 mV. This confirms the safety system shuts gas off correctly.

If your loaded reading is below 9 mV after cleaning, don’t keep relighting and hoping the probe warms up. Replace the thermocouple. The behavior will only get worse, and running a marginal FFD partly defeats the whole gas-safety system.

If the new thermocouple delivers 18+ mV no-load but the burner still drops out on knob release, the gas valve electromagnet is weak. That’s a gas-fitter job, not a DIY one.

Is it safe to replace a thermocouple yourself?

For a residential surface burner, yes, in most US jurisdictions, with a few caveats. The thermocouple is a low-voltage signal cable. It carries no fuel. Swapping it does not involve opening the gas piping. An OEM-equivalent part runs about $15-$25. The labor portion of a pro call is typically $95-$175 in 2026.

Caveats:

• Shut off the gas supply at the appliance valve before you disconnect anything.
• After reinstall, check for leaks at the thermocouple-to-valve fitting with a soapy-water test or an electronic leak detector.
• If the valve fitting is corroded or the threads are damaged, stop. That repair opens the gas line.
• If a new thermocouple still won’t hold, the next failure point is the gas safety valve, which is a licensed-technician job.
• Some local codes, leases, and home-warranty contracts require licensed gas work on any range repair. Check before you start.

This guide does not cover wall-mounted regulator service or supply-line repair.

Why is my brand-specific gas stove burner not staying lit? (Plus the CPSC recall callout)

The physics is the same across brands, but the part names, service steps, and recall status differ. Before any brand-specific troubleshooting, run the CPSC recall lookup on your serial number.

GE

GE’s surface burners usually use a sealed-style burner cap and head with a co-located spark electrode and FFD probe. GE’s “GE appliance burner troubleshooting” documentation tells you to check cap alignment first. Multiple repair discussions involving GE ranges frequently mention carbon buildup and burner-cap misalignment as common causes of unstable flames.

Whirlpool

Whirlpool gas cooktops: Whirlpool (including KitchenAid, Maytag, and JennAir models) recommends checking the gas supply before moving on to ignition troubleshooting. This includes confirming that the gas shut-off valve is fully open and, for LP-powered units, verifying that the propane tank has sufficient fuel. Gas-supply issues are often one of the first things to rule out when none of the burners will light.

Samsung

“Samsung gas cooktop support” flags a scenario worth memorizing. If your burners light but don’t stay lit, especially when you ignite another burner, the cause is most likely low gas pressure, and the fix is to call your gas supplier, not your appliance technician. Samsung also issued a recall in August 2024 covering roughly one million units for an unrelated pets-can-activate-burners hazard. Verify your model isn’t on that list.

Frigidaire (and the active 2026 CPSC recall)

As of May 2026, Frigidaire owners should run the CPSC lookup before any DIY work. In March 2026, the “CPSC Frigidaire gas range recall” covered about 174,000 Frigidaire gas ranges sold through Home Depot and Lowe’s, citing a burn hazard. If your unit is affected, follow Electrolux Group’s remedy instead of pushing on with DIY troubleshooting. For non-recalled units, the “Frigidaire gas range cooktop support” follows the same physics: cap, thermocouple, gas supply, in that order.

Brand recall status changes. Re-check the CPSC database before you assume your unit is in the clear.

When should I call a licensed gas technician?

Stop the DIY work and call a licensed gas technician (or your utility) in any of these cases:

• You smell gas at any point during diagnosis or repair.
• The thermocouple-to-valve fitting is corroded, stripped, or leaks under a soapy-water test after reassembly.
• A new thermocouple delivers an 18+ mV open circuit, but the burner still dies on knob release (the safety valve electromagnet is failing).
• The regulator or gas supply line shows physical damage, corrosion, or pitting.
• Your range is on an active CPSC recall list.
• Multiple burners drop out at once when one is ignited (likely a supply-pressure issue, not a single-burner part).
• Your local code, lease, or home-warranty contract requires licensed work for any gas-appliance repair.

A diynot.com user reported that a British Gas engineer declined to strip down a cooktop for a thermocouple swap. Not every service tech does cooktop FFD work, so confirm scope when you book. NFPA 54 also recommends an annual licensed inspection of gas appliances no matter the symptoms.

Conclusion

A gas burner that won’t stay lit after you release the knob is almost always a flame-failure-device issue, and that’s by design. The FFD can’t prove a flame is there, so it shuts the gas off. Walk the DIY checklist top-down: recall check, hold time, cap alignment, burner-port cleaning, thermocouple cleaning, then the multimeter test. Most cases get solved at one of the first five steps with no parts at all. If the thermocouple fails its millivolt test, a $15-$25 replacement plus a soapy-water leak check usually restores normal operation. If a new thermocouple still can’t hold the valve open, DIY ends and licensed gas work begins.

Sources

• CPSC Recalls Database
• CPSC Frigidaire Gas Range Recall (March 2026)
• NFPA 54 National Fuel Gas Code
• Resideo VS8510/VS8520 Gas Valve Service Data
• GE Appliances Burner Support
• Whirlpool Gas Cooktop Not Lighting
• Samsung Gas Cooktop Burner Does Not Ignite
• Frigidaire Gas Range Cooktop Burners Are Not Lighting
• InspectAPedia Thermocouple Repair FAQs
• AppliancePartsPros Gas Stove Burner Won’t Light Repair Guide

Frequently asked questions

Why does my gas hob burner go out when I release the button?
The button (or knob) you’re holding manually overrides the flame-failure safety valve while gas flows. When you release it, the valve relies on the thermocouple’s millivolt signal to stay open. If the probe is dirty, mispositioned, or failed or you release the button before the probe is heated to roughly 18 mV no-load the valve closes and the flame dies.

Why does my gas turn off when the knob is released?
This is the flame-failure device working as designed. The thermocouple in the burner flame must generate at least 9 mV loaded to hold the gas safety valve open. Below that threshold, the valve electromagnet releases and gas shuts off. Clean the thermocouple, reseat the burner cap, and confirm you’re holding the knob for 15 to 30 seconds.

How do you clean a thermocouple on a gas stove?
Shut off gas to the appliance, let the burner cool, and lift off the cap and head. Use 320-grit emery cloth or fine sandpaper to scrub carbon and oxidation off the thermocouple tip (the small probe positioned in the flame). Wipe with a clean dry cloth, reinstall, and retest. Do not bend or reposition the probe it must sit directly in the flame.

Why is my gas oven igniting but not staying on?
A gas oven uses a hot-surface igniter or glow bar rather than a thermocouple on most modern US ranges. If it lights then dies, the most common cause is a weakening igniter that no longer draws enough current to open the safety valve. The fix is typically a glow-bar replacement, which is a separate procedure from the surface-burner thermocouple work in this guide.

Why is my gas stove not holding a flame?
A burner that lights and then immediately dies is almost always failing the flame-failure-device test: thermocouple dirty, burner cap off-center, knob released too soon, low gas pressure, or a weak safety valve. Work the DIY checklist in order. If the thermocouple’s loaded multimeter reading stays below 9 mV after cleaning, replace it.
